CIBRA: Computational Identification of Biologically Relevant Alterations • CIBRA

Installation

You can install the development version of CIBRA from GitHub with:

# install.packages("devtools")
devtools::install_github("AIT4LIFE-UU/CIBRA")

Example

For extensive examples of the utility of CIBRA, please consult the vignettes.

# load functions
library(CIBRA)
library(BiocParallel)

# load transcription data and genomic alterations from TCGA COADREAD
count_data <- CIBRA::TCGA_CRC_rna_data
mutation_profile <- CIBRA::TCGA_CRC_non_silent_mutation_profile

Prepare a definition matrix for analysis which indicates which samples are cases and controls.

In this example we will only focus on 6 genes: the tumor suppressor genes APC and TP53, the oncogenes KRAS, BRAF and PIK3CA and the often mutated gene TTN in colorectal cancer.

# prepare data for CIBRA

# select genes of interest
goi <- c("APC", "TP53", "KRAS", "BRAF", "PIK3CA")

# filter mutation profile for only selected genes
definition_matrix <- mutation_profile[goi]

# fix sample names for intersect between the two datatypes
rownames(definition_matrix) <- stringr::str_replace_all(rownames(definition_matrix), "-", ".")

# select intersect between definition matrix and count data
sample_list <- intersect(rownames(definition_matrix), colnames(count_data))

# select data and definition matrix as the intersect
count_data <- count_data[sample_list]
definition_matrix <- definition_matrix[sample_list,]

# show definition matrix
knitr::kable(head(definition_matrix))

	APC	TP53	KRAS	BRAF	PIK3CA
TCGA.3L.AA1B.01A	SNV	WT	WT	SNV	SNV
TCGA.4N.A93T.01A	WT	SNV	SNV	WT	WT
TCGA.4T.AA8H.01A	SNV	WT	SNV	WT	WT
TCGA.5M.AAT4.01A	SNV	SNV	SNV	WT	WT
TCGA.5M.AAT5.01A	SNV	SNV	WT	WT	WT
TCGA.5M.AAT6.01A	SNV	WT	SNV	WT	WT

Set the parameters to use with CIBRA and run CIBRA.

You can provide a larger definition matrix and indicate which columns to test in CIBRA. The number of permutation iterations to perform is recommended to be 50 to give an indication of the intrinsic variation in the dataset given the size of cases and control. However to make the example run quicker we have set it to 0 which turns of the internal permutation.

# focus on APC
columns <- goi

# set up parameters for CIBRA
control_definition <- "WT" # reference condition
confidence <- 0.1 # confidence threshold for the proportion calculation
# set permutation to 0 to skip permutations
iterations = 0 # number of permutation iterations to be performed per condition

register(SnowParam(4)) # set number of cores to be used

# run CIBRA with default DE analysis method (DESeq2)
CIBRA_res <- run_CIBRA(count_data, as.data.frame(definition_matrix),
                       columns = columns,
                       control_definition = control_definition,
                       confidence = confidence,
                       iterations = iterations,
                       parallel = TRUE)
#> [1] "SNV"
#> [1] "APC" "SNV"
#> [1] "SNV"
#> [1] "TP53" "SNV"
#> [1] "SNV"
#> [1] "KRAS" "SNV"
#> [1] "SNV"
#> [1] "BRAF" "SNV"
#> [1] "SNV"
#> [1] "PIK3CA" "SNV"

If the iterations where not set to 0, the average permutation signal measures and the standard deviation would have been reported.

# print the report table
knitr::kable(CIBRA_res$CIBRA_results)

def	col	proportion	sign_area	investigated	control	proportion_rnd_avg	proportion_rnd_sd	sign_area_rnd_avg	sign_area_rnd_sd
SNV	APC	0.4165	0.4228	358	113	NA	NA	NA	NA
SNV	TP53	0.429	0.4348	276	195	NA	NA	NA	NA
SNV	KRAS	0.3291	0.3297	198	273	NA	NA	NA	NA
SNV	BRAF	0.4552	0.4418	66	405	NA	NA	NA	NA
SNV	PIK3CA	0.2841	0.2716	131	340	NA	NA	NA	NA

Assess significance of the signal measures

# calculate the pvalue by comparing to a reference distribution generated with DESeq2
perm_data <- CIBRA::perm_dist_crc_tcga

# use the gamma test to also calculate a fitted p-value
CIBRA_res_stat <-  permutation_test(CIBRA_res$CIBRA_results, perm_data, test = "gamma")

# print the report table
knitr::kable(CIBRA_res_stat$results)

def	col	proportion	sign_area	investigated	control	proportion_rnd_avg	proportion_rnd_sd	sign_area_rnd_avg	sign_area_rnd_sd	perm_test_prop	perm_test_area	pvalue_prop	pvalue_sign_area
SNV	APC	0.4165	0.4228	358	113	NA	NA	NA	NA	0.0000000	0.0000000	0.0000172	0.0009079
SNV	TP53	0.429	0.4348	276	195	NA	NA	NA	NA	0.0000000	0.0000000	0.0000089	0.0007003
SNV	KRAS	0.3291	0.3297	198	273	NA	NA	NA	NA	0.0052910	0.0070547	0.0012682	0.0065272
SNV	BRAF	0.4552	0.4418	66	405	NA	NA	NA	NA	0.0000000	0.0000000	0.0000022	0.0006016
SNV	PIK3CA	0.2841	0.2716	131	340	NA	NA	NA	NA	0.0176367	0.0291005	0.0089891	0.0212896

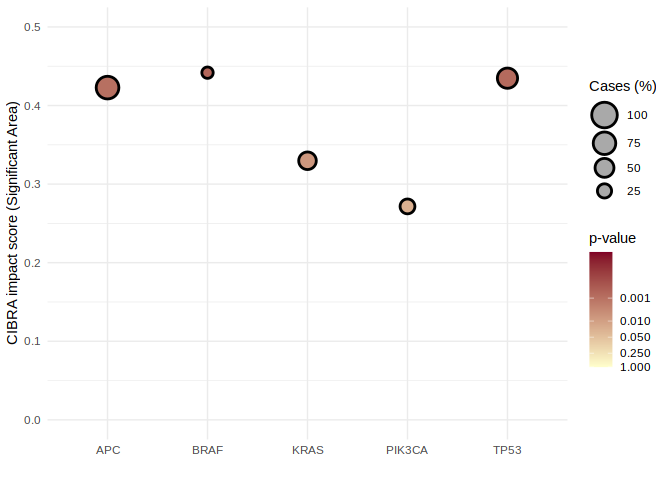

visualize the results

require(ggplot2)
require(dplyr)
require(scales)

# visualize the results
plot_data <- CIBRA_res_stat$results %>% select(col, investigated, control, sign_area,
                                 pvalue_sign_area)

p <- ggplot(plot_data, aes(y = as.numeric(sign_area),
                          x = factor(col), fill = pvalue_sign_area)) +
  geom_point(aes(size = as.numeric(investigated)/(as.numeric(investigated)
                                                  + as.numeric(control))*100),
             shape = 21,
             color = "black", stroke = 1.5) +
  ylab("CIBRA impact score (Significant Area)") + xlab("") +
  scale_fill_continuous('p-value', low = "#ffffcc", high = "#800026",
                        breaks = c(0.001, 0.01, 0.05, 0.25, 1),
                        trans = compose_trans("log10", "reverse"),
                        limits = c(1,0.00001)) +
  scale_size_area(name = "Cases (%)",
                  breaks = c(25, 50, 75, 100),
                  limit = c(0,100), max_size = 8) +
  ylim(c(0,0.5)) +
  theme_minimal() +
  guides(size = guide_legend(reverse = TRUE, override.aes=list(fill = "darkgrey")))

print(p)

Contact

For questions, suggestions, or bug reports, please send an e-mail to Soufyan Lakbir (s.lakbir@vu.nl).

if you use CIBRA in published research, please cite: Lakbir S, et al. CIBRA identifies genomic alterations with a system-wide impact on tumor biology. Bioinformatics. 2024 Sep 1;40(Suppl 2):ii37-ii44. doi: 10.1093/bioinformatics/btae384. PMID: 39230704; PMCID: PMC11373315.
